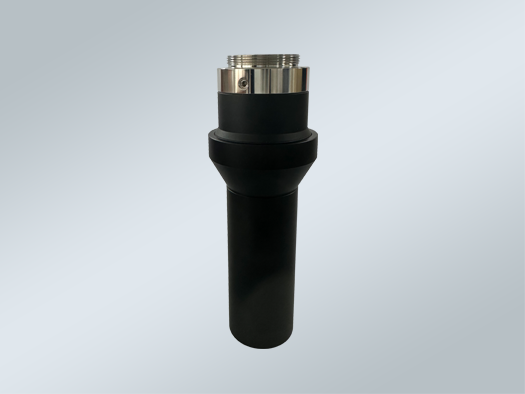

遠心レンズ - 製品概要

FAレンズ

ラインスキャンレンズ

遠心液状レンズ

FA液状レンズ

360度レンズ

MLレンズ

カスタマイズレンズ

型式	物体側視野	光学倍率	作動距離	F値	遠心度	歪曲公差	解像度（um）	被写界深度（mm）	マウント	CCD
BTL0.030X410B125	237	0.03	410±5	F4	<0.1°	<0.1	90	72	C	1/2
BTL0.042X318B125	169	0.042	318±4	F4.2	<0.1°	<0.1	64	54	C	1/2
BTL0.048X301B125	148	0.048	301±4	F5	<0.1°	<0.1	54	44	C	1/2
BTL0.053X288B125	134	0.053	288±4	F3.8	<0.1°	<0.1	49	34	C	1/2
BTL0.065X251B125	109	0.065	251±3	F.4	<0.1°	<0.1	41	22	C	1/2
BTL0.072X238B125	98	0.072	238±3	F4.2	<0.1°	<0.1	36	20	C	1/2
BTL0.080X208B125	89	0.08	208±2	F4.2	<0.1°	<0.1	33	18	C	1/2
BTL0.090X230B125	79	0.09	230±2	F4.2	<0.1°	<0.1	31	10	C	1/2
BTL0.100X178B125	71	0.1	178±2	F4.2	<0.1°	<0.1	27	16	C	1/2
BTL0.112X159B125	63	0.112	159±2	F4.2	<0.1°	<0.1	24	12	C	1/2
BTL0.113X187B125	63	0.113	187±2	F4.2	<0.1°	<0.1	23	12	C	1/2
BTL0.129X138B125	55	0.129	138±2	F4.5	<0.1°	<0.1	19	8	C	1/2
BTL0.150X128B125	47	0.15	128±2	F4.5	<0.1°	<0.1	17	6	C	1/2
BTL0.172X118B125	41	0.172	118±2	F4.2	<0.1°	<0.1	15	5	C	1/2
BTL0.199X111B125	35	0.199	111±2	F4.5	<0.1°	<0.1	14	4	C	1/2
BTL0.277X72B125	29	0.277	72±2	F3	<0.1°	<0.1	10	6	C	1/2
BTL0.033X410B12	242.42	0.033	410±5	4.18	<0.1°	<0.1	63.6	100	C	1/2
BTL0.047X318B12	170.21	0.047	318±4	4.18	<0.1°	<0.1	44.8	62	C	1/2
BTL0.053X301B12	150.94	0.053	301±4	4.18	<0.1°	<0.1	39.4	52	C	1/2
BTL0.058X288B12	137.93	0.058	288±4	4.18	<0.1°	<0.1	36.3	40	C	1/2
BTL0.072X251B12	111.11	0.072	251±3	4.18	<0.1°	<0.1	29.3	32	C	1/2
BTL0.080X238B12	100	0.08	238±3	4.18	<0.1°	<0.1	27.4	22	C	1/2
BTL0.090X208B12	88.89	0.09	208±2	4.18	<0.1°	<0.1	22.4	16	C	1/2
BTL0.100X230B12	80	0.1	230±2	4.18	<0.1°	<0.1	20.4	14	C	1/2
BTL0.111X178B12	72.07	0.111	178±2	4.18	<0.1°	<0.1	18.2	12	C	1/2
BTL0.124X159B12	64.52	0.124	159±2	4.18	<0.1°	<0.1	17	14	C	1/2
BTL0.125X187B12	64	0.125	187±2	4.18	<0.1°	<0.1	16.8	10	C	1/2
BTL0.143X138B12	55.94	0.143	138±2	4.18	<0.1°	<0.1	13.9	7	C	1/2
BTL0.166X128B12	48.19	0.166	128±2	4.18	<0.1°	<0.1	12.9	6	C	1/2
BTL0.190X118B12	42.11	0.19	118±2	4.18	<0.1°	<0.1	11.6	5	C	1/2
BTL0.221X111B12	36.2	0.221	111±2	4.18	<0.1°	<0.1	9.7	4	C	1/2
BTL0.308X72B12	25.97	0.308	72±2	4.7	<0.1°	<0.1	7.1	2	C	1/2
TC0.8X180A12	10	0.8	180	11.5	<0.1°	<0.1	9.5	0.8	C	1/2
TC6X65A12	1.33	6	65	35	<0.05°	<0.05	3	0.04	C	1/2
TL6X65A12	1.33	6	65	35	<0.05°	<0.05	3	0.04	C	1/2
TL0.3X110A12	26.67	0.3	110	13	<0.1°	<0.05	20.8	6.5	C	1/2
BTL0.5X200A118	18	0.5	197.1±3	/	<0.1°	<0.03	8.3	10	C	1/1.8
BTL0.037X410B118	243.24	0.037	410±5	4.2	<0.1°	<0.1	72.6	70	C	1/1.8
BTL0.053X318B118	169.81	0.053	308±4	4.2	<0.1°	<0.1	50.1	48	C	1/1.8
BTL0.060X301B118	150	0.06	301±4	4.2	<0.1°	<0.1	44.3	38	C	1/1.8
BTL0.066X288B118	136.36	0.066	288±4	4.2	<0.1°	<0.1	40.7	32	C	1/1.8
BTL0.081X251B118	111.11	0.081	251±3	4.2	<0.1°	<0.1	34.1	24	C	1/1.8
BTL0.091X238B118	98.9	0.091	238±3	4.7	<0.1°	<0.1	29.8	22	C	1/1.8
BTL0.100X208B118	90	0.1	208±2	4.7	<0.1°	<0.1	26.3	16	C	1/1.8
BTL0.113X230B118	79.65	0.113	230±2	4.7	<0.1°	<0.1	22.9	14	C	1/1.8
BTL0.125X178B118	72	0.125	178±2	4.7	<0.1°	<0.1	20.9	12	C	1/1.8
BTL0.140X159B118	64.29	0.14	159±2	4.2	<0.1°	<0.1	19.5	10	C	1/1.8
BTL0.141X187B118	63.83	0.141	187±2	5.3	<0.1°	<0.1	19.3	10	C	1/1.8
BTL0.161X138B118	55.9	0.161	138±2	4.7	<0.1°	<0.1	16.1	7	C	1/1.8
BTL0.187X128B118	48.13	0.187	128±2	5.3	<0.1°	<0.1	14.8	6	C	1/1.8
BTL0.215X118B118	41.86	0.215	118±2	4.7	<0.1°	<0.1	13.2	5	C	1/1.8
BTL0.250X111B118	36	0.25	111±2	5.3	<0.1°	<0.1	10.6	4	C	1/1.8
BTL0.347X72B118	25.94	0.347	72±2	5.3	<0.1°	<0.1	8.6	2.4	C	1/1.8
TC0.5X65A118	18	0.5	65	7.5	<0.1°	<0.05	7.5	1.2	C	1/1.8
TC0.5X200A118	18	0.5	199.4±3	8	<0.1°	<0.03	8.3	1.4	C	1/1.8
TC1.5X65A118	6	1.5	65	14	<0.1°	<0.05	5	0.23	C	1/1.8
TC2X110A118	4.5	2	110	14	<0.08°	<0.05	3.5	0.16	C	1/1.8
TL0.5X65A118	18	0.5	65	7.5	<0.1°	<0.05	7.5	1.2	C	1/1.8
TL0.5X200A118	18	0.5	197±3	8	<0.1°	<0.03	8.3	1.4	C	1/1.8
TL1.5X65A118-FA	6	1.5	64.2	14	<0.1°	<0.05	5	0.23	C	1/1.8
TL1.5x65A118	6	1.5	64.2	14	<0.1°	<0.05	5	0.23	C	1/1.8
BTL0.25X110A117	38	0.25	110.7	5.5	<0.1°	<0.05	11.7	9.4	C	1/1.7
BTC0.3X110A23	36.67	0.3	110	5.5	<0.1°	<0.05	9.8	1.74	C	2/3
BTL0.3X110A23	36.67	0.3	110	5.5	<0.1°	<0.05	9.8	1.74	C	2/3
BTL0.048X410B23	229.17	0.048	410±5	5.4	<0.1°	<0.1	70.8	5.2	C	2/3
BTL0.067X318B23	164.18	0.067	318±4	5.4	<0.1°	<0.1	51.4	40	C	2/3
BTL0.076X301B23	144.74	0.076	301±4	5.4	<0.1°	<0.1	45.3	34	C	2/3
BTL0.084X288B23	130.95	0.084	288±4	5.4	<0.1°	<0.1	41.3	30	C	2/3
BTL0.103X251B23	106.8	0.103	251±3	5.4	<0.1°	<0.1	33.4	20	C	2/3
BTL0.115X238B23	95.65	0.115	238±3	4.87	<0.1°	<0.1	31.5	16	C	2/3
BTL0.127X208B23	86.61	0.127	208±2	4.9	<0.1°	<0.1	26.9	12	C	2/3
BTL0.143X230B23	76.92	0.143	230±2	5.4	<0.1°	<0.1	24.7	12	C	2/3
BTL0.159X178B23	69.18	0.159	178±2	5.4	<0.1°	<0.1	22.4	10	C	2/3
BTL0.179X159B23	61.45	0.179	159±2	5.4	<0.1°	<0.1	19.5	7	C	2/3
BTL0.179X187B23	61.45	0.179	187±2	6.5	<0.1°	<0.1	20.6	10	C	2/3
BTL0.204X138B23	53.92	0.204	138±2	5	<0.1°	<0.1	16.9	6	C	2/3
BTL0.273X118B23	40.29	0.273	118±2	4.87	<0.1°	<0.1	13.6	3	C	2/3
BTL0.317X111B23	34.7	0.317	111±2	6	<0.1°	<0.1	11.6	3	C	2/3
BTL0.439X72B23	25.06	0.439	72±2	5.3	<0.1°	<0.1	8.1	2	C	2/3
TC0.4X110A23	27.5	0.4	110	6.5	<0.1°	<0.1	8.9	1.9	C	2/3
TC0.5X65A23	22	0.5	65	13	<0.1°	<0.1	17.4	3.4	C	2/3
TC0.5X110A23	22	0.5	109.6	9.6	<0.1°	<0.1	10	1	C	2/3
TL0.5X110A23	22	0.5	111.2	9.6	<0.1°	<0.1	10	1	C	2/3
TL0.8X65A23	13.75	0.8	65	9	<0.1°	<0.05	7.8	0.63	C	2/3
TC0.8X110A23	13.75	0.8	109	8	<0.1°	<0.05	6.2	0.35	C	2/3
TL0.8X110A23	13.75	0.8	109	8	<0.1°	<0.05	6.2	0.35	C	2/3
TC1.2X107A23	9.17	1.2	107	10	<0.1°	<0.05	4.1	0.3	C	2/3
TL1.2X107A23	9.17	1.2	107	10	<0.1°	<0.05	4.1	0.3	C	2/3
TC1.5X110A23	7.33	1.5	107	13	<0.1°	<0.05	5.1	0.3	C	2/3
TL1.5X110A23	7.33	1.5	107	13	<0.1°	<0.05	5.1	0.3	C	2/3
TC1X65A23	11	1	65	11	<0.1°	<0.05	6.6	0.49	C	2/3
TC1X110A23	11	1	110.9	10	<0.15°	<0.05	5	0.27	C	2/3
TL1X110A23	11	1	110.9	10	<0.15°	<0.05	5	0.27	C	2/3
TC2X65A23	5.5	2	65	12	<0.03°	<0.1	3.3	0.13	C	2/3
TC2X110A23	5.5	2	110	12	<0.3°	<0.07	3	0.1	C	2/3
TL2X110A23	5.5	2	110	12	<0.3°	<0.07	3	0.1	C	2/3
TC3X65A23	3.67	3	65	17	<0.05°	<0.1	2.7	0.085	C	2/3
TCS0.3X110A23	36.67	0.3	110	8	<0.1°	<0.05	13.3	3.98	C	2/3
TL0.2X148A23	55	0.2	147.5	6	<0.05°	<0.05	16.6	0.3	C	2/3
TL0.4X110A23	27.5	0.4	110	6.5	<0.12°	<0.01	8.9	1.9	C	2/3
TL0.5x65A23	22	0.5	65	13	<0.1°	<0.05	17.4	3.4	C	2/3
TL0.5x110A23(8u）	22	0.5	110	6.3	<0.1°	<0.02	7.7	0.8	C	2/3
TL0.8X65A23	13.75	0.8	65	9	<0.1°	<0.05	7.8	0.63	C	2/3
TL0.14X235A23	78.57	0.14	235	6	<0.1°	<0.05	25	10	C	2/3
TL0.15X129A23	73.33	0.15	129	8	<0.03°	<0.05	25.6	16	C	2/3
TL0.23X200A23-FT	47.83	0.23	200	8	<0.05°	<0.05	18.1	4.1	C	2/3
TL1.5X65A23	7.33	1.5	65	12	<0.1°	<0.2	4.4	0.24	C	2/3
TL1.5X110A23	7.33	1.5	108.3	10	<0.01°	<0.1	3.3	0.3	C	2/3
TL1.75X110A23	6.29	1.75	110	14	<0.2°	<0.1	4	0.2	C	2/3
TL2X65A23	5.5	2	65	12	<0.06°	<0.1	3.3	0.13	C	2/3
TL3X65A23	3.67	3	65	17	<0.005°	<0.1	2.7	0.085	C	2/3
TL4X65A23	2.75	4	65	17	<0.1°	<0.05	2.5	0.05	C	2/3
TLS0.3X110A23	36.67	0.3	110	8	<0.1°	<0.05	13.3	3.98	C	2/3
BTL0.069X410B1	231.88	0.069	410	6	<0.1°	<0.1	42.8	52	C	1
BTL0.098X318B1	163.27	0.098	318	6	<0.1°	<0.1	30.3	26	C	1
BTL0.111X301B1	144.14	0.111	301	6.5	<0.1°	<0.1	27.1	30	C	1
BTL0.122X288B1	131.15	0.122	288	6	<0.1°	<0.1	24.9	18	C	1
BTL0.149X251B1	107.38	0.149	251	6	<0.1°	<0.1	20.2	14	C	1
BTL0.168X238B1	95.24	0.168	238	6.5	<0.1°	<0.1	18.1	16	C	1
BTL0.185X208B1	86.49	0.185	208	6.5	<0.1°	<0.1	16.3	10	C	1
BTL0.208X230B1	76.92	0.208	230	6.5	<0.1°	<0.1	14.8	8	C	1
BTL0.232X178B1	68.97	0.232	178	6	<0.1°	<0.1	12.6	6	C	1
BTL0.259X159B1	61.78	0.259	159	6	<0.1°	<0.1	11.5	5	C	1
BTL0.260X187B1	61.54	0.26	187	7.8	<0.1°	<0.1	12.5	8	C	1
BTL0.298X138B1	53.69	0.298	138	5.6	<0.1°	<0.1	10.1	3	C	1
BTL0.347X128B1	46.11	0.347	128	8	<0.1°	<0.1	9.6	5	C	1
BTL0.398X118B1	40.2	0.398	118	6.5	<0.1°	<0.1	8.7	2	C	1.1
BTL0.461X111B1	34.71	0.461	111	7.8	<0.1°	<0.1	7.9	2	C	1
BTL0.642X72B1	24.92	0.642	72	9	<0.1°	<0.1	8.5	1.2	C	1
TC0.7X107A1	22.86	0.7	107.2	7	<0.1°	<0.05	5.3	0.64	C	1
TL0.7X107A1	22.86	0.7	107.2	7	<0.1°	<0.05	5.3	0.64	C	1
TC5X65A1	3.2	5	62.5	＞13.8	<0.15°	<0.05	1.5	/	C	1
BTL0.49X185A1.1	37.55	0.49	185	12	<0.1°	<0.03	7	2	C	1.1
BTL0.076X410B1.1	242.11	0.076	410	6.18	<0.1°	<0.1	46.9	40	C	1.1
BTL0.077X408A1.1	238.96	0.077	408	5	<0.035°	<0.035	46.3	26	C	1.1
BTL0.108X318B1.1	170.37	0.108	318	6.18	<0.1°	<0.1	33.7	26	C	1.1
BTL0.123X301B1.1	149.59	0.123	301	6.18	<0.1°	<0.1	29	20	C	1.1
BTL0.134X288B1.1	137.31	0.134	288	6.18	<0.1°	<0.1	26.2	16	C	1.1
BTL0.165X251B1.1	111.52	0.165	251	6.18	<0.1°	<0.1	22.8	12	C	1.1
BTL0.185X238B1.1	99.46	0.185	238	7.2	<0.1°	<0.1	20.4	13	C	1.1
BTL0.204X208B1.1	90.2	0.204	208	6.2	<0.1°	<0.1	18.5	8	C	1.1
BTL0.229X230B1.1	80.35	0.229	230	6.6	<0.1°	<0.1	16.4	10	C	1.1
BTL0.255X178B1.1	80.35	0.255	178	6.6	<0.1°	<0.1	14.1	6	C	1.1
BTL0.286X159B1.1	64.34	0.286	159	6.18	<0.1°	<0.1	13	4	C	1.1
BTL0.287X187B1.1	64.11	0.287	187	9.6	<0.1°	<0.1	14.2	8	C	1.1
BTL0.328X138B1.1	56.1	0.328	138	6.7	<0.1°	<0.1	11	4	C	1.1
BTL0.382X128B1.1	48.17	0.382	128	7.9	<0.1°	<0.1	10.3	4	C	1.1
BTL0.437X118B1.1	42.11	0.437	118	7.2	<0.1°	<0.1	9.3	2	C	1.1
BTL0.509X111B1.1	36.15	0.509	111	9.6	<0.1°	<0.1	8.3	3	C	1.1
BTL0.707X72B1.1	26.03	0.707	72	10.8	<0.1°	<0.1	6.3	2	C	1.1
TC0.6X110A1.1	30.67	0.6	110	6.5	<0.09°	<0.02	5.9	0.8	C	1.1
TC0.8X110A1.1	23	0.8	110	7.5	<0.1°	<0.05	5.2	0.5	C	1.1
TL0.8X110A1.1	23	0.8	110	7.5	<0.1°	<0.05	5.2	0.5	C	1.1
TC1.5X110A1.1	12.27	1.5	110	11.5	<0.1°	<0.05	3.9	0.25	C	1.1
TL1.5X110A1.1	12.27	1.5	110	11.5	<0.1°	<0.05	3.9	0.25	C	1.1
TC1X110A1.1	18.4	1	110	10	<0.1°	<0.05	5	0.45	C	1.1
TL1X110A1.1	18.4	1	110	10	<0.1°	<0.05	5	0.45	C	1.1
TC2X68A1.1	9.2	2	68	7.1~16	<0.2°	<0.05	1.8	0.08	C	1.1
TC3X65A1.1-GL	6.13	3	65	9.5~16	<0.2°	<0.05	1.6	0.04	C	1.1
TL3X65A1.1-GL	6.13	3	65	9.5~16	<0.2°	<0.05	1.6	0.04	C	1.1
TC4X65A1.1-GL	4.6	4	65	12~36	<0.15°	<0.05	1.4	0.04	C	1.1
TL4X65A1.1-GL	4.6	4	65	12~36	<0.15°	<0.05	1.4	0.04	C	1.1
TC5X65F1.1	3.68	5	65	13	<0.05°	<0.03	1.5	0.08	C	1.1
TL5X65F1.1	3.68	5	65	13	<0.05°	<0.03	1.5	0.08	C	1.1
TL0.2X125A1.1	92	0.2	125	6	<0.1°	<0.1	16.6	6.73	C	1.1
TL0.3X138A1.1	61.33	0.3	138	8	/0.05、	<0.05	13.8	3.9	C	1.1
TL0.6X110A1.1	30.67	0.6	110	6.5	/0.03	<0.02	5.9	0.8	C	1.1
TL0.22X180A1.1	83.64	0.22	180	8	<0.1°	<0.05	17.4	7.4	C	1.1
TL0.22X200A1.1	83.64	0.22	200	8	<0.1°	<0.1	17.4	7.4	C	1.1
TL0.23X200A1.1	80	0.23	200	8	<0.1°	<0.05	16.7	7.4	C	1.1
TL0.25X120A1.1	75.41	0.244	122.5	6	<0.1°	<0.1	13.6	4.52	C	1.1
TL0.36X150A1.1	51.11	0.36	150.4	9	<0.1°	<0.07	11	1.2	C	1.1
TL0.345X220A1.1	53.33	0.345	220	8	<0.1°	<0.05	11.5	3	C	1.1
TL0.367X220A1.1	50.14	0.367	221.7	8	<0.1°	<0.05	10.8	2.6	C	1.1
TL0.455X110A1.1	40.44	0.455	110	9	<0.1°	<0.05	8.7	1.2	C	1.1
TL2X68A1.1	9.2	2	68	7.1-16	<0.2°	<0.05	1.8	0.08	C	1.1
BTL0.603X128B175	45.77	0.603	128±2	11.4	<0.1°	<0.1	10.6	3	M58	1.75
BTL0.120X410B175	230	0.12	410±5	8	<0.1°	<0.1	49.1	48	M58	1.75
BTL0.171X318B175	161.4	0.171	318±4	8	<0.1°	<0.1	34.3	24	M58	1.75
BTL0.193X301B175	143.01	0.193	301±4	6.8	<0.1°	<0.1	32.3	16	M58	1.75
BTL0.214X288B175	128.97	0.214	288±4	8	<0.1°	<0.1	27.4	14	M58	1.75
BTL0.261X251B175	105.75	0.261	251±3	8	<0.1°	<0.1	22.5	12	M58	1.75
BTL0.291X238B175	94.85	0.291	238±3	8.5	<0.1°	<0.1	20.2	8	M58	1.75
BTL0.322X208B175	85.71	0.322	208±2	8.5	<0.1°	<0.1	18.2	6	M58	1.75
BTL0.362X230B175	76.24	0.362	230±2	8.5	<0.1°	<0.1	16.2	6	M58	1.75
BTL0.402X178B175	68.66	0.402	178±2	8.5	<0.1°	<0.1	14.4	5	M58	1.75
BTL0.452X159B175	61.06	0.452	159±2	6	<0.1°	<0.1	13.8	4	M58	1.75
BTL0.452X187B175	61.06	0.452	187±2	13.6	<0.1°	<0.1	15.1	7	M58	1.75
BTL0.517X138B175	53.38	0.517	138±2	8.5	<0.1°	<0.1	11.1	3	M58	1.75
BTL0.690X118B175	40	0.69	118±2	11.3	<0.1°	<0.1	9.5	2	M58	1.75
BTL0.801X111B175	34.46	0.801	111±2	13.6	<0.1°	<0.1	7.6	2	M58	1.75
BTL1.117X72B175	24.71	1.117	72±2	15	<0.1°	<0.1	6.5	1.4	M58	1.75
BTL0.137X410B2	240.88	0.137	410±5	6.5	<0.1°	<0.1	46.1	20	M58	2
BTL0.194X318B2	170.1	0.194	318±4	7.8	<0.1°	<0.1	31.8	14	M58	2
BTL0.220X301B2	150	0.22	301±4	7.8	<0.1°	<0.1	29.5	12	M58	2
BTL0.242X288B2	136.36	0.242	288±4	7.8	<0.1°	<0.1	25.8	9	M58	2
BTL0.296X251B2	111.49	0.296	251±3	7.8	<0.1°	<0.1	22.2	8	M58	2
BTL0.332X238B2	99.4	0.332	238±3	7.7	<0.1°	<0.1	19.5	5	M58	2
BTL0.367X208B2	89.92	0.367	230±2	8.6	<0.1°	<0.1	18.1	5	M58	2
BTL0.412X230B2	80.1	0.412	230±2	9.7	<0.1°	<0.1	16.1	4	M58	2
BTL0.458X178B2	72.05	0.458	178±2	7.8	<0.1°	<0.1	14.1	3	M58	2
BTL0.514X159B2	64.2	0.514	159±2	9.7	<0.1°	<0.1	12.7	3	M58	2
BTL0.515X187B2	64.08	0.515	187±2	12.9	<0.1°	<0.1	14.4	5	M58	2
BTL0.589X138B2	56.03	0.589	138±2	9.7	<0.1°	<0.1	11.1	3	M58	2
BTL0.685X128B2	48.18	0.685	128±2	12.9	<0.1°	<0.1	10.2	3	M58	2
BTL0.786X118B	41.98	0.786	118±2	12.9	<0.1°	<0.1	9.3	2	M58	2
BTL0.914X111B2	36.11	0.914	111±2	17.2	<0.1°	<0.1	8.6	2	M58	2
BTL1.272X72B2	25.94	1.272	72±2	17.2	<0.1°	<0.1	6.3	1.6	M58	2
BTL0.163X410B39	231.9	0.163	410	6.5	<0.1°	<0.1	38.3	20	M58	39
BTL0.230X318B39	164.35	0.23	318	6.5	<0.1°	<0.1	25.5	11	M58	39
BTL0.261X301B39	144.83	0.261	301	10	<0.1°	<0.1	22.5	10	M58	39
BTL0.287X288B39	131.71	0.287	288	7	<0.1°	<0.1	21.7	9	M58	39
BTL0.351X251B39	107.69	0.351	251	8.5	<0.1°	<0.1	17.8	6	M58	39
BTL0.393X238B39	96.18	0.393	238	9.1	<0.1°	<0.1	16.3	5	M58	39
BTL0.434X208B39	87.1	0.434	208	10.2	<0.1°	<0.1	13.8	4	M58	39
BTL0.488X230B39	77.46	0.488	230	11.5	<0.1°	<0.1	14.2	5	M58	39
BTL0.543X178B39	69.61	0.543	178	10.5	<0.1°	<0.1	13.1	4	M58	39
BTL0.610X159B39	61.97	0.61	159	10	<0.1°	<0.1	11.7	3	M58	39
BTL0.613X187B39	61.66	0.613	187±2	18	<0.1°	<0.1	4.3	7	M58	39
BTL0.698X138B39	54.15	0.698	138	10	<0.1°	<0.1	8.9	2	M58	39
BTL0.814X128B39	46.44	0.814	128	15	<0.1°	<0.1	8.7	2	M58	39
BTL0.931X118B39	40.6	0.931	118	15.3	<0.1°	<0.1	8.2	2	M58	39
BTL1.080X111B39	35	1.08	111	18	<0.1°	<0.1	7.1	2	M58	39
BTL1.503X72B39	25.2	1.5	72	20.4	<0.1°	<0.1	6	2	M58	39
BTL0.182X410B44	241.76	0.182	410±5	6	<0.1°	<0.1	34.3	14	M58	44
BTL0.257X318B44	171.21	0.257	318±4	6	<0.1°	<0.1	24.3	6	M58	44
BTL0.292X301B44	150.68	0.292	301±4	10	<0.1°	<0.1	21.4	12	M58	44
BTL0.321X288B44	137.07	0.321	288±4	6.2	<0.1°	<0.1	18.3	4	M58	44
BTL0.392X251B44	112.24	0.392	251±3	8	<0.1°	<0.1	19.6	6	M58	44
BTL0.439X238B44	100.23	0.439	238±3	10.2	<0.1°	<0.1	16.9	5	M58	44
BTL0.486X208B44	90.53	0.486	208±2	11.4	<0.1°	<0.1	12.8	4	M58	44
BTL0.547X230B44	76.66	0.574	230±2	12.8	<0.1°	<0.1	11.7	5	M58	44
BTL0.608X178B44	72.37	0.608	178±2	10.3	<0.1°	<0.1	10.1	2.4	M58	44
BTL0.680X187B44	64.71	0.68	187±2	20.5	<0.1°	<0.1	11.4	7	M58	44
BTL0.682X159B44	64.52	0.682	159±2	10	<0.1°	<0.1	9.7	3	M58	44
BTL0.782X138B44	56.27	0.782	138±2	12	<0.1°	<0.1	7.9	2	M58	44
BTL0.911X128B44	44.4	0.911	128±2	17.1	<0.1°	<0.1	7.2	2	M58	44
BTL1.048X118A44	41.98	1.048	118	17.2	<0.1°	<0.1	9.5	1.4	M58	44
BTL1.212X111B44	36.3	1.212	111±2	18.7	<0.1°	<0.1	6.2	1.2	M58	44
BTL1.685X72B44	26.11	1.685	72±2	22.8	<0.1°	<0.1	5.8	1.2	M58	44
BTL0.245X410B59	232.65	0.245	410±5	8.7	<0.1°	<0.1	17.7	16	M72*P0.75	59
BTL0.346X318B59	164.74	0.346	318±4	8.5	<0.1°	<0.1	13.7	8	M72*P0.75	59
BTL0.392X301B59	145.41	0.392	301±4	15	<0.1°	<0.1	18.2	12	M72*P0.75	59
BTL0.432X288B59	131.94	0.432	288±4	10	<0.1°	<0.1	11.5	7	M72*P0.75	59
BTL0.528X251B59	107.95	0.528	251±3	10	<0.1°	<0.1	11.1	5.2	M72*P0.75	59
BTL0.916X159B59	62.23	0.916	159±2	12	<0.1°	<0.1	7.2	2.6	M72*P0.75	59

カスタマイズ
